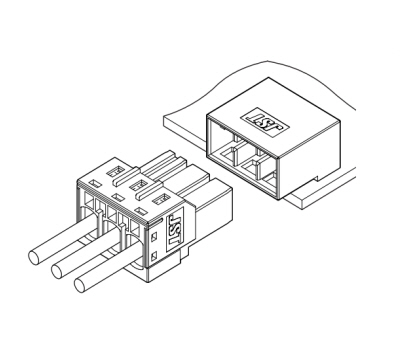

JST J-FAT-S-XL connector. This 8.0mm pitch wire to board connector provides innovative new features compared to other standard terminal block connections.

As opposed to a traditional screw-termination method, the J-FAT-S-XL enables the wires to be attached via a unique spring-clamp receptacle. This 2-piece system method provides a secure contact retention and protection against wires getting accidentally pulled out. This is a terminal free connector, the wire is simply stripped and pushed into the connector by the use of a small hand tool.

Available in 3 and 6 circuits, the J-FAT-S-XL connector has a current rating of 23A AC,DC when using AWG#10 with the 3 circuit connector.

• Excellent contacting reliability

Spring provides the gas-tight area between wire and terminal, and the stable high reliable contact is given.

• Terminal free connector

The connector features an internal spring lock mechanism which removes the need to have a separate crimp terminal. Just strip the wire and insert it into the connector, whilst deflecting the locking spring with the finger friendly hand tool; J-FAT-OT-XL

• High durability performance

100 cycles of durability is guaranteed.

•  High current

Current rating is 23A when using AWG#10 and 3-circuit connector. The actual current value is depended on the number of circuits and the wire.

• UL/TUV Standard

UL 1977 and UL 1059 will be acquired. TUV will be acquired.

• EC directive 2002/95/EC (the RoHS Directive) - Compliant
