CW Type- Nylon Ins, Copper sleeve- Flared_1

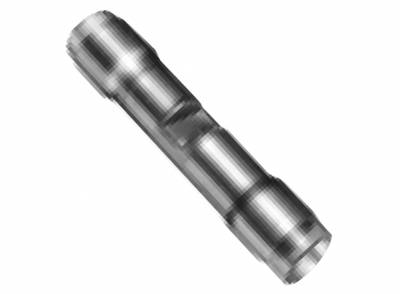

CW Type - Window Type Butt Splice Nylon-insulated with copper sleeve, flared entry
  • Features
  • Specification
  • Downloads
  • Tooling
  • Samples















  • Flared entry

Quick, and easy wire insertion.

  • Oxygen-free copper with excellent electrical characteristics

Oxygen-free copper is used for JST's standard splices. This material has high electroconductivity and inherent toughness and it can be safely brazed with no chance of hydrogen embrittlement. It also exhibits excellent electrical and mechanical characteristics which surpass those of other copper materials.

  • Anti vibration sleeve

The terminal barrel is first covered with a copper sleeve and then insulated with vinyl, it is extremely resistant to vibration.

  • Insulation

Nylon insulation with excellent flame resistance and insulation properties.

Some important features of JST insulated splices are their excellent resistance to heat, cold, oil, and fire, and their exceptional insulating performance.

  • Temperature

Temperature rating of 105oC.

  • RoHS Compliant

01 - Connection Type: Solderless Splices
02 - Product Type: Butt (Window Type) Splice
12 - Applicable Wire Size: 0.25 to 6.64mm (AWG #22 to #10)

Full Technical Drawings

If you require full technical drawings or any other in-depth information about this product series, please contact us using the link below.

Contact Us

Additional Information

This product series has some additional information related to it that you can download from the list below.

1) Catalogue Page
Tool Types

Click on a Tool Type/Category to view related tools to this series.

Hand Tools (For Insulated Terminals)
Can't find a Tool?

If you're having trouble finding the right tool, please contact our sales team.

Contact Us
Hand Tools (For Insulated Terminals)

Please select a tool for more information.

YNT-1614
Ratchet Handtool for 2.0mm Nominal (Blue), Insulated Terminals
YNT-1210S
Ratchet Handtool for 5.5mm Nominal (Yellow), Insulated Terminals
YNT-2216
Ratchet Handtool for 1.25mm Nominal (Red), Insulated Terminals
