FHH CONNECTOR 0.5mm Pitch ZIF Connector for FPC

Enquire about this product Send to a Friend

Features
Specification
Downloads
Samples

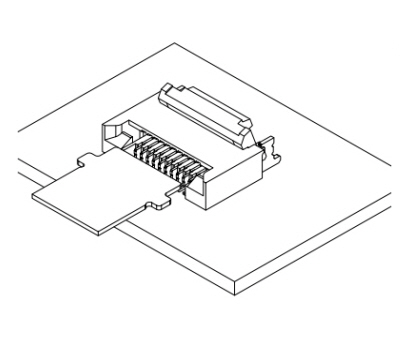

Enlarge Diagram

This is 2.0mm height connector with the double-sided contact for FPC.

As FPC with protrusions is used for this FHH connector, prevention of incomplete insertion and misinsertion are realised and connection reliability is improved.

RoHS Compliant

01 - Connection Type:	Printed Circuit Board Connectors
02 - Product Type:	FFC/FPC Connectors
03 - Pitch / Style:	0.50mm
04 - Current rating:	0.5A AC,DC
05 - Voltage rating:	50V AC,DC
06 - Temperature range:	-25 to +85 Degrees Celsius
07 - Available number of circuits:	10, 30, 40, 50, 60
11 - Feature:	ZIF Type
13 - PCB Mount Style:	Surface Mount Technology (SMT)

Full Technical Drawings

If you require full technical drawings or any other in-depth information about this product series, please contact us using the link below.

Additional Information

This product series has some additional information related to it that you can download from the list below.

1) Catalogue Page 2) Handling Manual 3) 3D Model
