SFK CONNECTOR 1.8mm Pitch Disconnectable Crimp Style

Enquire about this product Send to a Friend

Features
Specification
Downloads
Tooling
Samples

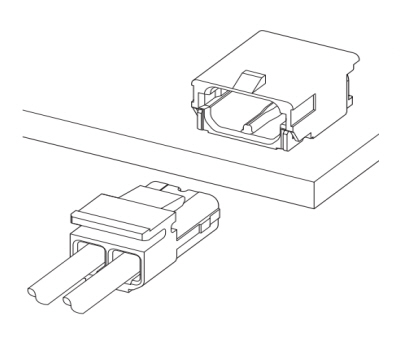

Enlarge Diagram

JST introduces the new SFK connector series, this 1.8mm pitch wire to board connector was originally designed for the power supply of LED backlight in LCD televisions.

This crimp style 2-position surface mount connector has a secure locking device and a voltage rating of 350V AC,DC. Available in embossed tape reel packaging to enable high speed processing.

Withstand high voltage

Secure lock

Halogen free

EC directive 2002/95/EC (the RoHS Directive) - Compliant

01 - Connection Type:	Printed Circuit Board Connectors
02 - Product Type:	Wire to Board Crimp style Connectors
03 - Pitch / Style:	1.80mm
04 - Current rating:	3.2A AC,DC
05 - Voltage rating:	350V AC,DC
06 - Temperature range:	-25 to +85 Degrees Celsius
07 - Available number of circuits:	2
11 - Feature:	Secure locking device
13 - PCB Mount Style:	Surface Mount Technology (SMT)

Full Technical Drawings

If you require full technical drawings or any other in-depth information about this product series, please contact us using the link below.

Additional Information

This product series has some additional information related to it that you can download from the list below.

1) Catalogue Page 2) 2D Drawing 3) 3D Model

Tool Types

Click on a Tool Type/Category to view related tools to this series.

Applicators (Industry Standard) Applicators (JST Standard) Crimping Press (For JST standard applicators)

Can't find a Tool?

If you're having trouble finding the right tool, please contact our sales team.

Applicators (Industry Standard)

Please select a tool for more information.

	CDS SSFH001-05/CMKS-L Industry Standard (Semi Automatic) Applicator for SSFH-001T-P0.5
	CDS SSFH002-05/CMKS-L Industry Standard (Semi Automatic) Applicator for SSFH-002T-P0.5

Applicators (JST Standard)

Please select a tool for more information.

	DS SSFH002-05/MKS-L JST Standard (Semi Automatic) Applicator for SSFH-002T-P0.5
	DS SSFH001-05/MKS-L JST Standard (Semi Automatic) Applicator for SSFH-001T-P0.5
