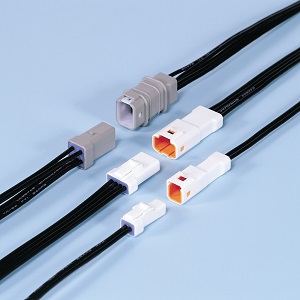

The JWPF Series Wire to Wire waterproof connector is designed for small applications that require resistance to water ingress.

Uniquely constructed, this Waterproof 2.0mm pitch connector features a spring action housing to terminal lock, which assures smooth and easy insertion and firm contact retention.

This waterproof connector also incorporates a solid rubber seal for wire side sealing, which facilitates a compact size and ensures a waterproof grade of more than 7 ingress protection of JIC C 0920 (IP X7 of IEC 60529).

Applications

• Domestic Appliance
• Automotive
• Power
• Vending
• Air Conditioning

# These are a representation of some of the applications and uses of this product, and is by no means definitive.

Connector variation

• The connector is available in three variations;
• JWPF Connector (Wire-to-Board Type)
• JWPF Connector (Wire-to-Wire, Panel lock Type)

Water-proof grade

• More than grade 7 ingress protection of JIS C 0920. (IEC 60529 IPX7)

Contained seal ring

• Seal ring is applied for complete sealing at mating side that is contained in the tab housing which protects from dust, scratch, etc.

Solid rubber seal

• Solid rubber seal is used for wire side sealing that makes the size compact.

Double-spring construction

• Contact has double-spring construction, main spring and assist spring, that ensures superior contact force.

Housing-to-terminal locks

• Spring action housing-to-terminal locks are an inherent part of the housing, and assure smooth contact insertion and firm contact retention yet with low insertion force.

Inner-housing lock

• This inter-housing lock secures the plug to the receptacles and prevents accidental disconnection. The lock with protector on both sides is protected and is not affected by external forces that might result from the routing of wires.

Application Equipment

• Hand, Semi-Automatic and Fully Automatic assembly devices are available. See Tooling tab for further details.

Standards

• UL Recognised E60389
• TUV Certified E50326661

Connector variation

• ZWP Connector (1.5mm Pitch Type)
