XSR Connector

0.6mm Pitch Disconnectable IDC

Enquire about this product

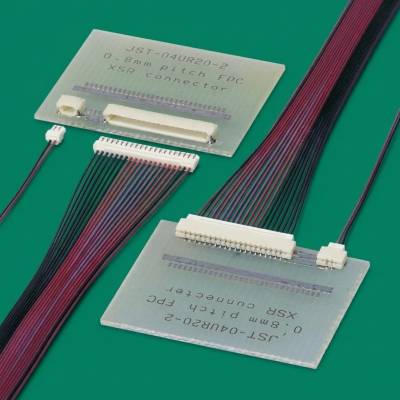

This XSR wire to board connector is a super small Insulation Displacement (IDC) product that is a great fit for pocket-sized applications.

The connector is available in 2 to 22 circuits, with a current rating of 0.2Amps, 30V AC/DC and operating temperature range of -25^oC to +85^oC.

Twin U-slot Insolation Displacement (ID) design

The ID interface section of the connector consists of JST’s proven twin U-slot structure, which ensures high reliability in the contact area.

Strain relief structure

Incorporates a 3-point wire grip design that alleviates excessive stress at the wire-idc interface section of the connector.

Application equipment

Hand, Semi-Automatic and Fully Automatic assembly devices are available. See Tooling tab for further details.

Approvals

Product environmental compliance statement

Similar products

01 - Connection Type:	Printed Circuit Board Connectors
02 - Product Type:	Wire to Board Insulation Displacement Connectors
03 - Pitch / Style:	0.60mm
04 - Current rating:	0.2A AC,DC
05 - Voltage rating:	30V AC,DC
06 - Temperature range:	-25 to +85 Degrees Celsius
07 - Available number of circuits:	2 to 22
13 - PCB Mount Style:	Surface Mount Technology (SMT)

Full Technical Drawings

If you require full technical drawings or any other in-depth information about this product series, please contact us using the link below.

This product series has some additional information related to it that you can download from the list below.
