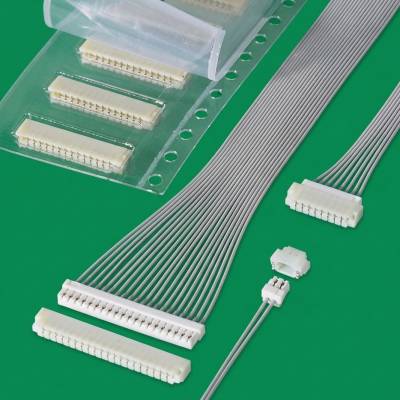

This SUR wire to board connector is a miniature Insulation Displacement (IDC) component that is perfect for small and compact devices.

The connector is available in 2 to 22 circuits, with a current rating of 0.5Amps, 30V AC/DC and operating temperature range of -25^oC to +85^oC.

Twin U-slot Insolation Displacement (ID) design

• The ID interface section of the connector consists of JST’s proven twin U-slot structure, which ensures high reliability in the contact area.

Strain relief structure

• Incorporates a 3-point wire grip design that alleviates excessive stress at the wire-idc interface section of the connector.

Connector variations

• SUH Connector (Crimp type)

Application equipment

• Hand, Semi-Automatic and Fully Automatic assembly devices are available. See Tooling tab for further details.

Approvals

• UL: E60389
• CSA: LR20812

Product environmental compliance statement

• RoHS
