JST - SUH Connector

We have an organisational structure that is accredited to IATF16949 ‘Quality Management System’. Find out more

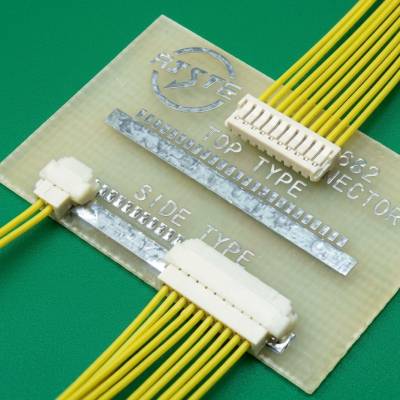

SUH CONNECTOR 0.8mm Pitch Disconnectable Crimp Style

This SUH wire to board connector is well suited for small and compact applications.

The connector is available in 2 to 20 circuits, with a current rating of 1Amps, 30V AC/DC and operating temperature range of -25^oC to +85^oC.

Housing-to-terminal locks

Spring action housing-to-terminal locks are an inherent part of the housing and ensures smooth contact insertion and firm contact retention yet with low insertion force.

Shrouded header structure

The robust four wall structure is designed to project the pins from damage and ensure that incorrect mating does not occur.

Connector variations

Application equipment

Hand, Semi-Automatic and Fully Automatic assembly devices are available. See Tooling tab for further details.

Approvals

Product environmental compliance statement

Similar products

01 - Connection Type:	Printed Circuit Board Connectors
02 - Product Type:	Wire to Board Crimp style Connectors
03 - Pitch / Style:	0.80mm
04 - Current rating:	1.0A AC,DC
05 - Voltage rating:	30V AC,DC
06 - Temperature range:	-25 to +85 Degrees Celsius
07 - Available number of circuits:	2, 3, 4, 5, 6, 10, 12, 14, 16 & 20
13 - PCB Mount Style:	Surface Mount Technology (SMT)
